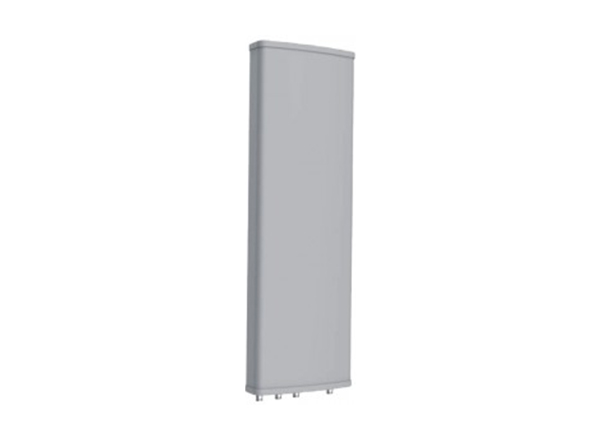

Exhaust Pipe Camouflage Antenna(1710-2170MHz)

Exhaust Pipe Camouflage Antenna(1710-2170MHz)

Model No: AT17211865X4E3

Technical Specification

Item NameSpecification
Frequency Range (MHz)1710-2170/1710-2170
Gain(dBi)

17.5±1/17.5±1

Horizontal Beam Width(3dB)(°)65±6/65±6
Vertical Beam Width(3dB)(°)7±1/7±1
Electrical Downtilt(°)0-8
VSWR≤1.5:1
Isolation between Ports(dB)≥28
Cross Polarization Ratio(dB)轴向≥15;±60°≥10
Upper Sidelobe Suppression(dB)≤-16
Null-FilK(dB)N/A
Front to Back Ratio(dB)≥25
Polarization±45°
Input Maximum CW Power(W)250
PIMD 3th≤-150dBc(@20W)
Impedance(Ω)50
Input Connector4*7/16DIN female
Dimensions of Antenna(mm)Φ200×2800
Dimensions of Package(mm)3775×540×385
Weight of Antenna(kg)28
Weight of Mounting Kits(kg)/
Install Position Adjustment(°)0~10
Temperature(℃)-40~+60
Max Wind Speed (m/s)60
Radome MaterialPVC
Diameter of Installation Pole( mm)

/
