Cable   Type

1/4” Super Flexible Jumper Cable(Black PE)

Cable   Length

5 Meters

Connector   Type

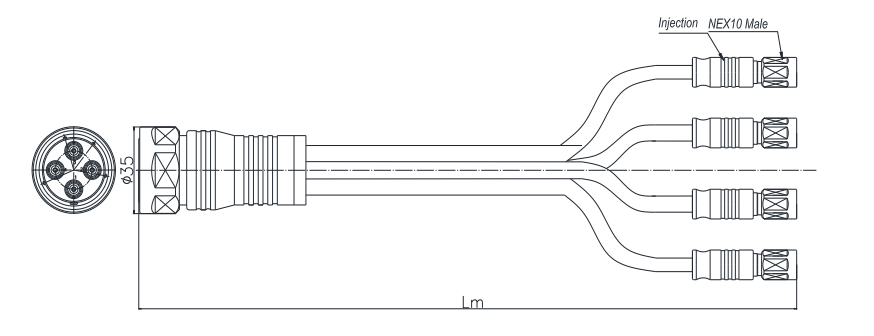

MQ4 Male to NEX10 Male

Connector   Angle

Straight

Assembly   Method

Soldering

Impedance

50Ω

Insulation   Resistance

≥5000MΩ·km

Dielectric   Withstanding Voltage

1000V rms

Operating   Voltage

500V rms

Maximum   Operating Frequency

≤6.0GHz

Insertion   Loss

≤ 0.37*L+0.20dB(L=   Cable Length) @DC~3.0GHz,

≤ 0.54*L+0.23dB(L=   Cable Length) @3.0~6.0GHz

VSWR

≤ 1.15@DC-2.7GHz, ≤ 1.20@2.7-4.2GHz,

≤ 1.35@4.2-6.0GHz

PIM3

≤-155dBc@1800MHz

Temperature Range

Installation Temperature: -45°C ~ + 65°C

Operating Temperature: -45°C ~ + 85°C
