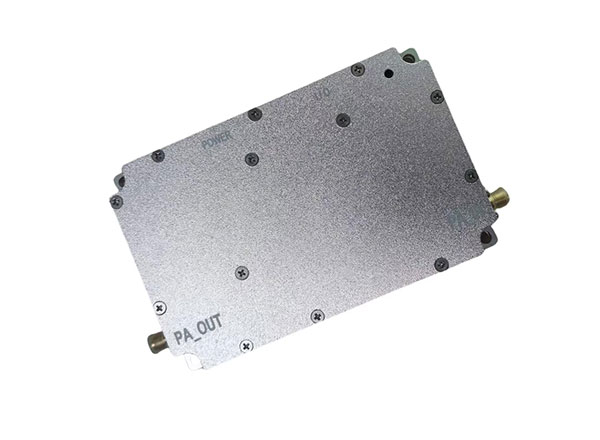

Action Amplifiers are suitable for frequency bands ranging from 20MHz to 6GHz,the output power can be customized from 1 Watts to 200 Watts. The amplifiers utilize the cutting edge Solid-State technologies, such as GaN, LDMOS, with multi-measures, such as advanced broadband RF matching networks and combining technologies(Doherty design), then provide exceptional performance with high gain, high efficiency, wide dynamic range, low distortions, and good linearity. The amplifiers have a variety of applications including Aerospace, Military, Radar, Electronic Warfare, Communication system(Repeater/BDA,RF Jammer, IMSI catcher), SATCOM, EMI/RFI testing, Lab test and measurement, PIM testing and so on. Action Technologies' ISO9001: 2015 quality management system assures consistent performance, high reliability and ruggedness.
Solid-state Class AB design
High gain and high efficiency
High input/output isolation
Ultra-wide band
Compact design and lightweight
Built-in protection and monitoring circuits
| Items | Specifications |
| Frequency Range | 20~512MHz |
| Bandwidth | 400MHz |
| Output Power@Continuous Wave | ≥100W/(50dBm) |
| Gain | 16±2dB |
| Passband Ripple | ≤3.5dB |
| Input VSWR | <2.0 |
| Working Current | ≤10A |
| Positive Power Detection | 0~3V@31mV/dB |
| Standing Wave Alarm Protection | When The Standing Wave Ratio is Greater Than 3.5, The Power Amplifier is Turned off and an Alarm is Triggered. |
| Temperature Detection | 500mV+T(℃)*10mV/℃ |
| Over Temperature Protection | If The Temperature Exceeds 85 ±5℃, Turn off The Power Amplifier and Sound an Alarm. If the Temperature is 65 ±5℃ The Power Amplifier Will Automatically Resume Operation. |
| Operation Temperature | -40℃~+65℃ |
| Supply Voltage | DC 28±1V |
| RF Input Connector | SMA-F |
| RF Output Connector | SMA-F |

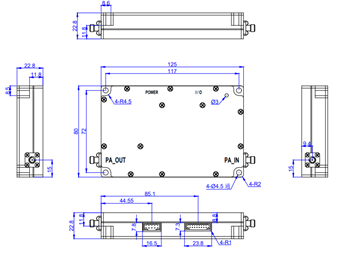

| Dimensions | 125*80*22.8mm |
| Power Interface | Power Interface Mode: JL23-10ZJW |
| PIN1:GND@Power Ground; | |
| PIN2:GND@Power Ground; | |
| PIN3:GND@Power Ground; | |
| PIN4:GND@Power Ground; | |
| PIN5:GND@Power Ground; | |
| PIN6: +28V@PA +28V Power Supply (10A); | |
| PIN7: +28V@PA +28V Power Supply (10A); | |
| PIN8: +28V@PA +28V Power Supply (10A); | |
| PIN9: +28V@PA +28V Power Supply (10A); | |
| PIN10: 5.5V@DC Power Supply(300mA); | |
| Control Interface | Power Interface Mode: JL24-20ZJW |
| PIN1:---@Reserved Pins; | |
| PIN2:TR @High Incidence and Low Harvest; | |
| PIN3:VSWR_ALM -OUT Direction @Standing Wave Alarm, High Level Effective; | |
| PIN4:PF-OUT Direction@Positive Power Detection Voltage at The Amplifier End(0-3V); | |
| PIN5:VT-OUT Direction@Vt=500mV+T(℃)*10mV/℃; | |
| PIN6: Re1@Reserved Pins; | |
| PIN7: GND; | |
| PIN8: GND; | |
| PIN9: GND; | |
| PIN10: GND; | |
| PIN11: Re2@Reserved Pins; | |
| PIN12: Re3@Reserved Pins; | |
| PIN13: Re4@Reserved Pins; | |
| PIN14: Re5@Reserved Pins; | |
| PIN15: Re6@Reserved Pins; | |
| PIN16: Re8@Reserved Pins; | |
| PIN17: GND; | |
| PIN18: GND; | |
| PIN19: GND; | |
| PIN20: GND; |
