13.75-15GHz 200W Power Amplifier Module for Starlink Satellite

Model: ATPA13750-15000M-53-57-N1

Video

Product Description

Action Amplifiers are suitable for frequency bands ranging from 20MHz to 15GHz,the output power can be customized from 1 Watts to 200 Watts. The amplifiers utilize the cutting edge Solid-State technologies, such as GaN, LDMOS, with multi-measures, such as advanced broadband RF matching networks and combining technologies(Doherty design),then provide exceptional performance with high gain, high efficiency, wide dynamic range, low distortions, and good linearity. The amplifiers have a variety of applications including Aerospace, Military, Radar, Electronic Warfare, Communication system(Repeater/BDA,RF Jammer, IMSI catcher), SATCOM, EMI/RFI testing, Lab test and measurement, PIM testing and so on. Action Technologies’ ISO9001:2015 quality management system assures consistent performance, high reliability and ruggedness.

Feature

Support the function of controlling the power amplifier switch;
Support over-temperature protection function and RF output open-circuit protection function.

Technical Specification

Items	Specifications
Frequency Range	13.75~15GHz
Typical Power Gain	57dB
Output Power	≥53dBm/200W
Power Flatness	≤±2dB
Signal Mode	CW, Pulse Signal and Various Types of RF Modulation Sources
Operating Voltage	+28V
Spurious	≤-65dBc
Input VSWR	≤1.5
Power Consumption	<900W @ 200W CW RF Signal Output
Power Interface Pin Definition	Pin Name	Function	Remark
	1. +28	Positive Power Supply	Power Supply Input
	2. +28	Positive Power Supply
	3. +28	Positive Power Supply
	4. +28	Positive Power Supply
	5. GND	Power Ground	Connected to Mechanical shell
	6. GND	Power Ground
	7. GND	Power Ground
	8. GND	Power Ground
Control Interface Pin Definition	1.PTT	Enable	When the TTL Signal is High, the Power Amplifier is Turned On
	2.TEMP	Temperature Alarm	Low Level for Normal, High Level for Alarm
	3.RS458+	TX	Serial Communication
	4.VTEMP	Temperature Reporting	V out=(10mV/℃*Temp℃)+500mV
	5.RS485-	RX	Serial Communication
	6.SWCLK	/	Program Download Port
	7.SWDIO	/
	8.+3.3V	/
	9.GND	/
Power Connector	J30J08P080S000S0P00
Control Connector	J30J-9ZKP
RF Input Connector	SMA -Female
RF Output Connector	WR75

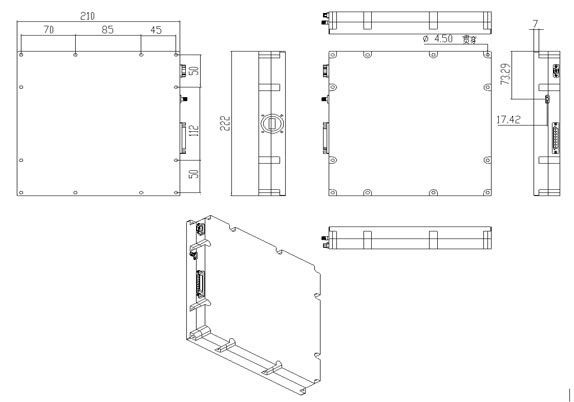

Dimension	222x210x34mm
Weight	<4Kg
Working Temperature	-40℃~+55℃
