5G Pentaplexer

5G Pentaplexer

Model: AT050501063843F

Application


Technical Specification

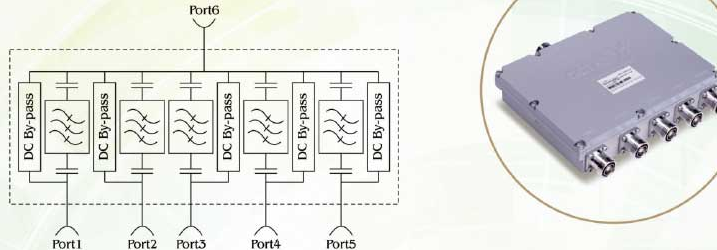

TypeSingle Unit (5Ports In- 1Port Out)
PortsPort 1Port 2Port 3Port 4Port 5
Frequency Range698~960MHz1710~1880MHz1920~2170MHz2300~2700MHz3300~3800MHz
Insertion Loss≤0.5dB
VSWR≤ 1.25
Isolation Between Ports ≥50.0 dB
PIM3≤-150dBc@ 2 x 20 W
Power Handling≥200W
Connector Type4.3-10 Female
ApplicationIndoor or Outdoor(IP67)
Impedance50 Ω
Operating Temperature-20°C to +65°C
MountingWall or Mast Mount
Dimensions270x195x55mm
Weight≤4kg
Packing1PCS/Box
