5G Dual Band Combiner

5G Dual Band Combiner

Model: AT050201063843F

Application


Technical Specification

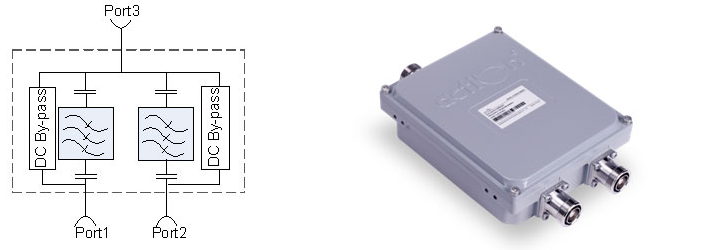

Type2Ports In- 1Port Out
PortsPort 1Port 2
Operating Frequency Band698~2700MHz3300~3800MHz
Insertion loss ≤0.3dB
VSWR≤1.25
Isolation Between Bands≥40.0 dB
PIM3≤-150 dBc@ 2 x 20 W

Power Handling

200W
Lightning Protection10kA, 10/350us pulse
DC/AISG TransparencyBy-Pass(Max. 3000mA)
Impedance50 Ω
Connector Type(Customized)4.3-10 Female
ApplicationIndoor or Outdoor(IP67)
Operating Temperature-20°C to +65°C
Relative Humidity5%~95%
MountingWall or Mast Mounting
Dimensions140x120x43mm
Weight≤1.4Kg
Packing1PCS/Box
