Schematic Diagram:

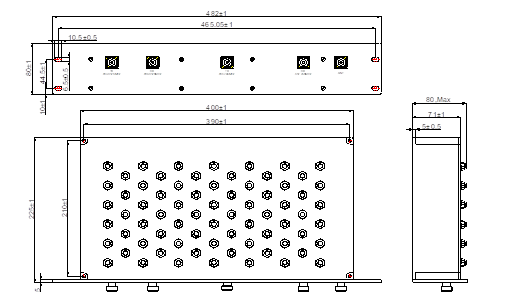

Outline Drawing:
Items | Specifications | |
Operating Frequency | Channel 1 | TX: 483.0125MHz RX: 486.0125MHz |
Channel 2 | TX: 484.7625MHz RX: 487.7625MHz | |
Insertion Loss(Rx/Tx) | ≤3dB | |
In-Band Ripple | ≤2.8dB | |
Isolation | ≥70dB | |
Return Loss | ≤-20dB | |
Impedance | 50 Ω | |
Input Power | ≤10W@Rx Port, ≤50W@Tx Port | |
Connector Type | Rx Port | 2XN-Female |
Tx Port | 2XN-Female | |
ANT Port | 1XN-Female | |
Operating Temperature | -25°C to +60°C | |
Application | Indoor | |
Mounting | Wall Mount | |
Dimension | 482*225*80mm（19x13x2U） | |
Weight | ≤8kg | |
Color | Black | |
