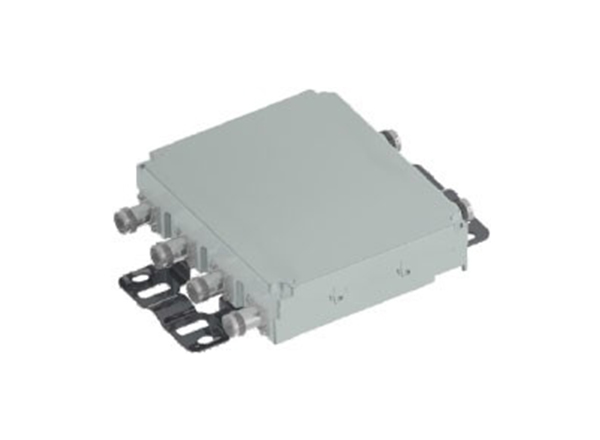

Quadplexer (N Type)

Quadplexer (N Type)

Model: AT0504010624NF-3

Technical Specification

Type4Ports In-1Port Out
PortsPort 1Port 2Port 3Port 4
Operating Frequency(Customized)698~960MH1710~1880MHz1920~2170MHz2300~2400MHz
VSWR≤1.22
lnsertion Loss≤0.8dB @698~960MHz
≤0.8dB @1710~1880MHz
≤0.8dB @1920~2170MHz
≤0.8dB @2330~2400MHz
lsolation Between Bands≥ 80dB
PIM3≤-155dBc@2 x 20W
Power Handling≤200W
Connector TypeN Female
Applicatianlndoor
lmpedance50Ω
Operating Temperature-20℃ to+65℃
Relative Humidity5%~95%
Weight≤1.45Kg
Dimensions175x148x35.5(mm)
Packing1 PCS/Box
