iDEN Band Selective RF BDA

iDEN Band Selective RF BDA

Model: ATHA43B1

Frequency Range851 ~ 866MHz

TechnologyiDEN

Output Power30/.../43±2dBm (Customized)

Maximum Gain80/.../95±3dB(Customized)

Product Description

The iDEN RF BDA is designed to provide a more cost-effective solution than adding a new Base Transceiver Station (BTS) to improve signal coverage and communication quality in iDEN system. And its easy installation and maintenance can help carrier get fast return.

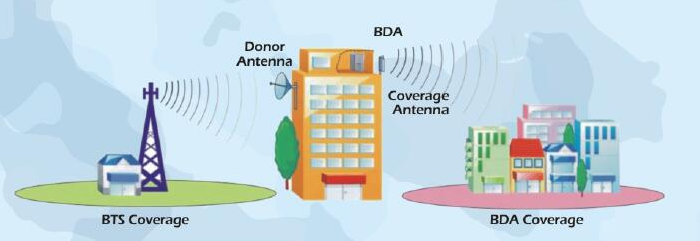

The BDA is working as a relay between the BTS and mobiles. It receives the low-power signal from BTS via the Donor Antenna, linearly amplifies the signal and then retransmits it via the Coverage Antenna to the weak/blind coverage area. And the mobile signal is also amplified and retransmitted to the BTS via the opposite direction.

The band-selective function can amplify all signals in the whole band (bandwidth is customized).


Feature

1. Aluminum-alloy casing with IP65 protection for high resistance to dust, water and corrosion.

2. Supporting TETRA/DMR/P25/iDEN system.

3. Low interference to BTS by adopting linear amplifier with high gain and low noise.

4. Adopting filter with highly selectivity and low insertion loss eliminates interference between uplink and downlink.

5. RJ45 port provides a link to a notebook for local supervision or IP Based NMS (Network Management System) that can remotely supervise BDA’s working status and download operational parameters to the BDA Via Ethernet or LAN.


Application


To expand signal coverage or fill signal blind area where BTS signal is weak or unavailable.


1. Public Safety

2. Transportation

3. Utilities

4. Government

5. Military

6. PAMR

7. Commercial & Industry

8. Oil & Gas



Technical Specification

ITEMSSPECIFICATIONS
Frequency Range(Customized)UplinkDownlink

380~385MHz/

415~420MHz/

806~821MHz

390~395MHz/

425~430MHz/

851~866MHz

Bandwidth(To Specify Before Production)From 1 to 15MHz, Filter SAW Adjusted
Maximum Gain(Customized)85±3dB85/.…./90±3dB
Maximum Output Power(Customized)30±2dBm30/.../43±2dBm
ln-Band Fatness≤±2.5dB
ALC(Auto Level Control)≤2dB(When The Maximum Output Power of BDA is Reached, lncrease Input Power by 1~20dbm, Output Variation ≤2dB)
Noise Figure≤5dB
Gain Adjustment Range1~31 dB @Step of 1 dB
VSWR≤1.5
System Delay≤5uSec
Spurious Emission9KHz-1GHz:≤-36dBm/30KHz
1GHz-12.75GHz:≤-30dBm/30KHz
Third-Order lnter-Modulation≤-45dBc
Output/Input Resistance50Ω
RF ConnectorN-Type (Female)
Working Temperature-25℃~+55°C
Relative Humidity Range≤95% (Non Condensing)
Power SupplyAC220V, 50/60Hz
Dimensions428mmx328mm×175mm
Weight15kg
Applicationlndoor or Outdoor(IP65)
Local ControlWeb Browser GUI Local Via RJ-45 Interface or WiFi Hotspot
NMS Mode(Optional)

Wirelss Modem(3G/4G). IP Connectivity

NMS Function(Optional)

Real-time Alarn for Door Status, Temperature, Power Supply, VSWR etc;

Remote Control Such as Turn On/Off, Increasing/Decreasing Output Power etc;

Realtime Status for Output/Input Power, UL/DL Gain,All Status of BDA etc.
