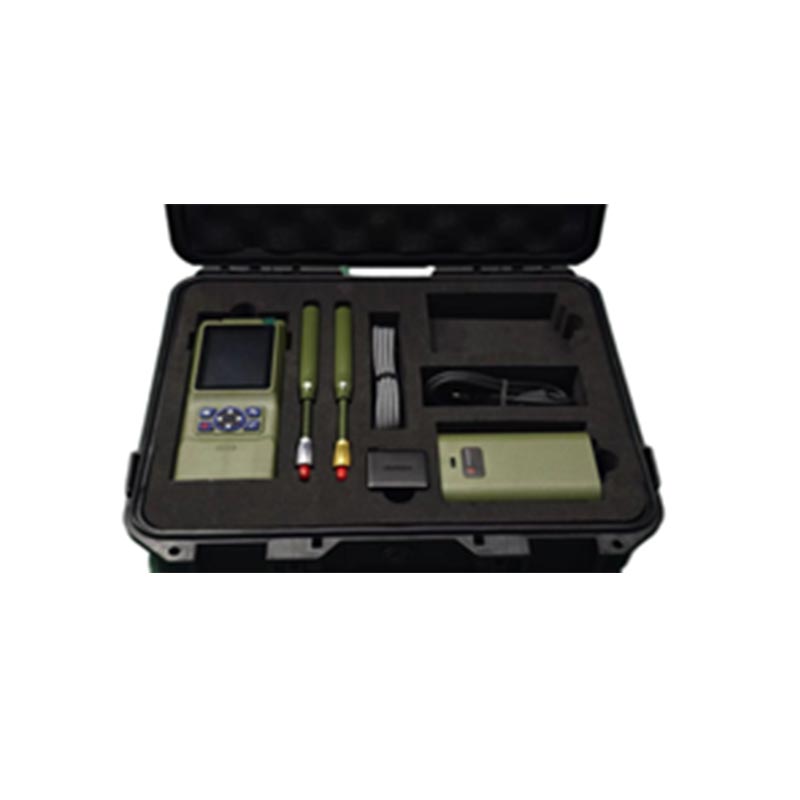

This Ultra-Wideband Portable Drone Detection System adopts a superheterodyne architecture to capture high-definition OFDM digital video signals from mainstream drone brands including DJI and Autel within the 100 MHz – 8 GHz frequency band. It is also capable of detecting FM analog video signals transmitted by FPV drones. Equipped with dual antennas and multi-channel parallel scanning technology, the system boasts fast response, high sensitivity, long detection distance and anextremely low false alarm rate.

• Full-Spectrum Precision Detection: The system provides ultra-wideband coverage from 100 MHz to 8 GHz with a 1 MHz tuning step, ensuring no blind spots across the spectrum. It captures real-time analog video signals for drone-occupied bands with industry-leading low false alarm rates while simultaneously displaying critical data such as drone type, signal frequency, and signal strength.

• Broad Industry Compatibility: It offers comprehensive support for detecting mainstream drone brands, including DJI, Autel, and other industry-leading manufacturers.

• Enhanced Direction-Finding (DF) Capabilities: The system supports optional directional antennas, allowing operators to locate signal sources by analyzing dynamic signal strength changes, significantly improving locking efficiency and detection accuracy.

• Real-Time Video Feedback: Capable of intercepting real-time FPV (First Person View) analog video feeds within the 100 MHz – 8 GHz range. It features dual display modes: direct viewing on the integrated screen or exporting high-definition imagery to external terminals via a proprietary magnetic interface.

• Countermeasure System Integration: The magnetic interface facilitates rapid synchronization with backpack-type jammers, establishing an integrated "detect-and-defeat" platform to enhance airspace control and operational efficiency.

• Ruggedized Environmental Adaptability: Engineered for extreme conditions, the device maintains stable, fault-free operation at temperatures ranging from -20 °C to +60 °C.

• Superior Ingress Protection: Rated IP54, the housing resists dust and water splashes, ensuring reliable performance in harsh outdoor environments.

• High-Efficiency Power Management: Supports 35 W fast charging, enabling a full charge in just 1 hour to minimize operational downtime.

• Extended Battery Life: Equipped with a replaceable 2900 mAh high-performance lithium-ion battery, it delivers up to 7 hours of continuous operation for prolonged missions.

• Wireless Data Synchronization: It features integrated Bluetooth for real-time transmission of telemetry and monitoring data to compatible remote terminals, boosting the convenience of command and control.

•
