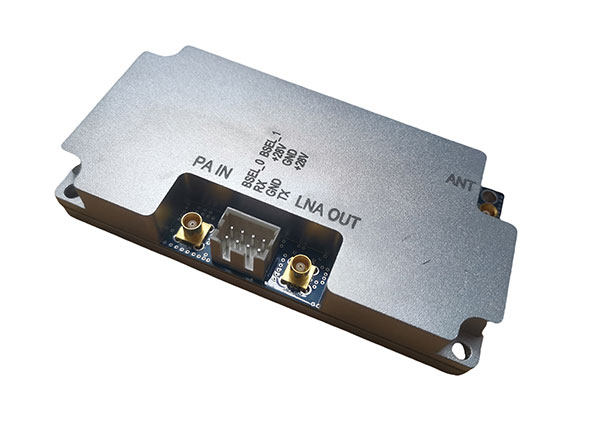

The Amplifiers are suitable for frequency bands ranging from 20MHz to 6GHz,the output power can be customized from 1 Watts to 200 Watts. The amplifiers utilize the cutting edge Solid-State technologies, such as GaN, LDMOS, with multi-measures, such as advanced broadband RF matching networks and combining technologies(Doherty design),then provide exceptional performance with high gain, high efficiency, wide dynamic range, low distortions, and good linearity. The amplifiers have a variety of applications including Aerospace, Military, Radar, Electronic Warfare, Communication system(Repeater/BDA,RF Jammer, IMSI catcher), SATCOM, EMI/RFI testing, Lab test and measurement, PIM testing and so on. Action Technologies’ ISO9001:2015 quality management system assures consistent performance, high reliability and ruggedness.
High gain and high efficiency
High input/output isolation
Ultra-wide band
Compact design and lightweight
Built-in protection and monitoring circuits
| Items | Specifications | |
| Downlink/Tx | Uplink/Rx | |
| Frequency Range | 450~1500MHz | 450~1500MHz |
| Max Output Power | 40dBm/10W | -- |
| Gain@25℃ | 47±2dB | 10±2dB |
| Passband Ripple | ≤2.5dB(Only the Effective Frequency Bands are Required: Within The Two Frequency Band Ranges of 450-650 MHz in the U Frequency and 1000-1500 MHz in the L Frequency, U and L do not Operate Simultaneously) | |
| ACPR@20MHz LTE | ≤-30dBc(Effective Frequency Band) | -- |
| PAR=8dB at 0.01 | ||
| EVM | ≤5%(Effective Frequency Band) | -- |
| Transmit-Receive Isolation | ≥55dB | |
| Transceiver Switching Time | ≤6us | |
| Noise Figure | -- | ≤3dB |
| Input VSWR | ≤1.5 | ≤1.5 |
| Output VSWR | No Value | ≤1.5 |
| Maximum Input Power | 15dBm(Free of Damage) | 10dBm |
| PA Output Protection | The PA Remains Undamaged After Being Open-Circuited for 10 Minutes | - |
| Working Voltage | DC+28V | |
| Working Current | ≤2.0A@10W,≤1.6A@5W |
| RF Connector | MCX-Female |
| Working Temperature | -40℃~+80℃ |

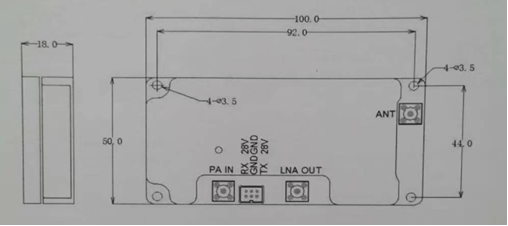

| Dimension | 100*50*18mm |
| Interface Definition | Model Power Supply and Control Connector: XHD-2*4A; |
| PIN1:TX@High Level (+3.3V) is Effective, With a Maximum Output Current of 5mA; | |
| PIN2:+28V@The Maximum Input Voltage Does Not Exceed 32V; | |
| PIN3:GND; | |
| PIN4:GND; | |
| PIN5:RX@High Level (+3.3V) is Effective, With a Maximum Output Current of 5mA; | |
| PIN6:+28V@The Maximum Input Voltage Does Not Exceed 32V; | |
| PIN6:BSEL-0@The BSEL Control Word is a Frequency Band Switching Control Field, With a 3.3V Level Standard and a Maximum Output Current of 5mA. When The Output is 01, The 450-650MHz Frequency Band is Selected; When The Output is 10, the 1000-1500MHz Main Band is Chosen. It is Mainly Used for Switching Between the Transmitting or Receiving Filters; | |
| PIN7:BSEL-1;@The BSEL Control Word is a Frequency Band Switching Control Field, With a 3.3V Level Standard and a Maximum Output Current of 5mA. When The Output is 01, The 450-650MHz Frequency Band is Selected; When The Output is 10, the 1000-1500MHz Main Band is Chosen. It is Mainly Used for Switching Between the Transmitting or Receiving Filters; |
