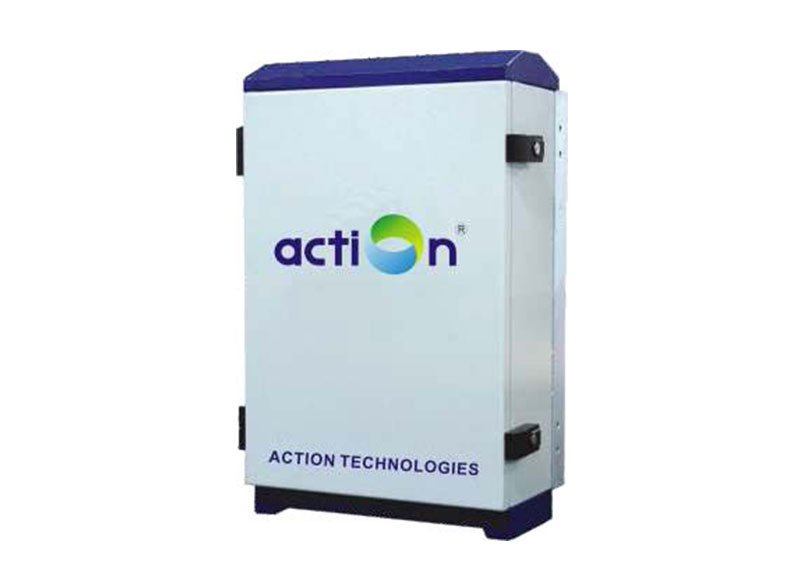

Triple Band RF Repeater

Triple Band RF Repeater

Model: ATLA30B3~ATLA43B3

Frequency Range900MHz & 1800MHz & 2100MHz

TechnologyGSM & DCS & WCDMA

Output Power30/.../43±2dBm (Customized)

Maximum Gain80/.../95±3dB(Customized)

Product Description

900MHz&1800MHz&2100MHz Triple Band RF Repeater


The triple band RF Repeater (RFR) is designed to provide a more cost-effective solution than adding a new Base Transceiver Station (BTS) to improve signal coverage and communication quality in triple system. And its easy installation and maintenance can help carrier get fast return.

The repeater is working as a relay between the BTS and mobiles. It receives the low-power signal from BTS via the Donor Antenna, linearly amplifies the signal and then retransmits it via the Coverage Antenna to the weak/blind coverage area. And the mobile signal is also amplified and retransmitted to the BTS via the opposite direction.



Feature

1. Aluminum-Alloy casing with IP65 protection for high resistance to dust, water and corrosion.

2. Supporting 5G/4G/3G/2G system

3. Low interference to BTS by adopting linear amplifier with high gain and low noise.

4. Adopting filter with highly selectivity and low insertion loss eliminates interference between uplink and downlink.

5. RJ45 port provides a link to a notebook for local supervision or IP Based NMS(Network Management System) that can remotely supervise repeater’s working status and download operational parameters to the repeater Via Ethernet or LAN.


Application



To expand signal coverage or fill signal blind area where signal is weak or unavailable.


Outdoor: Airports, tourism regions, golf courses, tunnels, factories, mining districts, villages, …


Indoor: Hotels, exhibition centers, basements, shopping malls, offices, parking lots, …


Technical Specification

ItemsSpecifications
System5G/4G/3G/2G
Frequency Range
Uplink880~915MHz1710~1785MHz1920~1980MHz
Downlink925~960MHz1805~1880MHz2110~2170MHz
Bandwidth(To Specify Before Production)CustomizedCustomizedCustomized
Output PowerUplink30±2dBm
Downlink

30/.../43±2dBm(Customized)

Maximum Gain80/.../95±3dB(Customized)
Gain Adjustment Range0~31 dB @Step of 1 dB
Gain Flatness(Typical)≤±2dB
ALC(Auto Level Control)≤2dB(When The Maximum Output Power of Repeater is Reached, lncrease Input Power by 1~20dbm, Output Variation ≤2dB)
Maximum Input Power(Non-Destructive)0dBm
Spurious Emission9KHz-1GHz:≤-36dBm/30KHz
1GHz-12.75GHz:≤-30dBm/30KHz
StandardComplies with 3GPP and ETSI
Noise Figure≤6dB
VSWR≤1.5
System Delay≤5us
I/O lmpedance50Ω
RF ConnectorN-Type (Female)
Operation Temperature Range-25℃~+55°C
Relative Humidity Range≤95% (Non Condensing)
Power Supply(Customized)DC-48V or AC110V/220V,50/60Hz
Power Consumption≤450W
Applicationlndoor or Outdoor(IP65)
Dimensions500mmx440mm×235mm
Weight≤45kg
Local ControlWeb Browser GUI Local Via RJ-45 Interface or WiFi Hotspot
NMS Mode(Optional)Wirelss Modem(3G/4G), IP Connectivity
NMS Function(Optional)

Real-time Alarn for Door Status, Temperature, Power Supply, VSWR etc;

Remote Control Such as Turn On/Off, Increasing/Decreasing Output Power etc;

Realtime Status for Output/Input Power, UL/DL Gain,All Status of Repester etc.
