The Trunk Amplifier is designed to provide a more cost-effective solution than adding a new Base Transceiver Station (BTS) to improve signal coverage and communication quality in mobile system. And its easy installation and maintenance can help carrier get fast return.

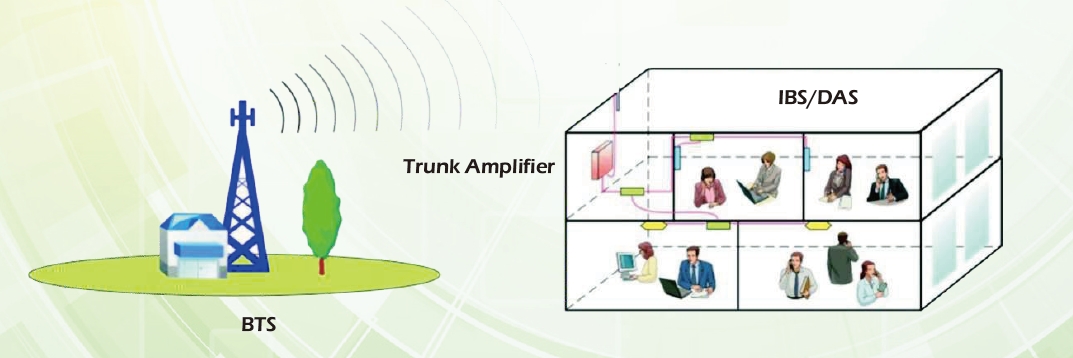

The Trunk Amplifier is working as a relay between the repeater and distributed antennas.

It receives the low-power signal from Trunk line of indoor distribution system via the coupler, linearly amplifies the signal and then retransmits it via the cables to the antenna distribution system. And the mobile signal is also amplified and retransmitted to the repeater via the opposite direction.

• Aluminum-alloy casing with IP65 protection has high resistance to dust, water and corroding

• Low interference to BTS by adopting linear amplifier with high gain and low noise

• Adopting filter with highly selectivity and low insertion loss eliminates interference between uplink and downlink

• USB port provides a link to a notebook for local supervision or to the built-in wireless modem to communicate with the NMS (Network Management System) that can remotely supervise repeater’s working status and download operational parameters to the repeater
