VHF Band Selective Pico BDA

Model: AT7A20B1-2

Frequency Range164 ~ 174MHz

TechnologyVHF

Output Power20±2dBm

Maximum Gain70±3dB

Video

Product Description

The VHF Pico BDA provides an affordable solution to solve the indoor signal coverage problems due to signal fading and attenuation caused by architecture obstacles. And its easy installation and maintenance can help carrier get fast return.

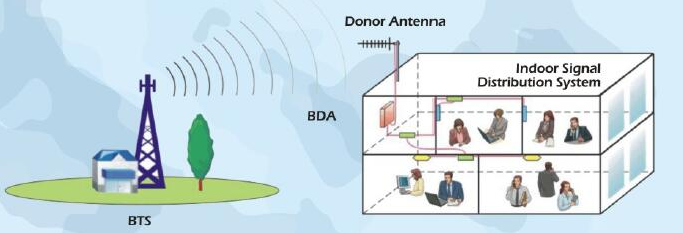

The BDA is working as a relay between the BTS and mobiles. It picks up the strongest signal from BTS via the Donor Antenna, linearly amplifies the signal and then retransmits it via the Indoor Signal Distribution System to the weak/blind coverage area. And the mobile signal is also amplified and retransmitted to the BTS via the opposite direction.

Feature

1. Two signal ports with full duplex design

2. Supporting all combination UHF bands.

3. Linear power amplification to effectively suppress inter-modulation and spurious emission.

4. Smart Automatic Level Control (ALC) to ensure stable and continuously adjustable output level.

5. Auto Isolation check between service and donor antennas.

6. Smart Mode to auto-adjust gain according to the isolation and signal level received by donor site.

7. Simple installation with external AC/DC adapter.

Application

To expand signal coverage or fill signal blind area where BTS signal is weak or unavailable.

1. Public Safety

2. Transportation

3. Utilities

4. Government

5. Military

6. PAMR

7. Commercial & Industry

8. Oil & Gas

Technical Specification

ITEMS		SPECIFICATIONS
Frequency Range (Customized)	Uplink	138-225MHz(10MHz Separation Between Uplink to Downlink)
	Downlink	138-225MHz(10MHz Separation Between Uplink to Downlink)
Working Bandwidth (To Specify Before Production)		From 1 to 10MHz, Filter SAW Adjusted
Maximum Gain		65±3 dB
Maximum Output Power		20±2dBm(Customized)
AGC&MGC Range		≥20dB
Maximum Input power (Non-Destructive)		≤0dBm
I/O Impedance		50Ω
Noise Figure		≤6dB
System Delay		≤5uSec
VSWR		≤2.0
Spurious Emission		9kHz~1GHz:≤ -36dBm/30kHz
		1GHz~12.75GHz:≤ -30dBm/30kHz
RF Connector		N-Type (Female)
Power Consumption		≤25W
Power Supply		Input: AC100- 240V Output:9V/5A
Dimensions		265mmx188mm×68mm
Weight		≤5 kg
Alarm Monitoring System		Alarm for uplink self-oscillation
lsolation Detection		lsolation Check During Boot Time
LED Indication		Power supply, alarm, state
Operating Temperature		-10~ +50 ℃
Application		Indoor(IP30)
Relative Humidity Range		≤95%(Non condensing)
