5GNR TDD-3.8GHz Fiber Optic Repeater with 4x4 MIMO

5GNR TDD-3.8GHz Fiber Optic Repeater with 4x4 MIMO

Model: AT50B24A-7(Remote Unit)

Frequency Range3700 ~ 3800MHz

Technology5GNR

Output Power24±2dBm(DL)

Maximum Gain≤±6dB for All Band

Product Description

The Fiber Optic Repeater (FOR) is designed to solve problems of weak mobile signal in the place that is far away from the Base Transceiver Station (BTS) and has fiber optic cable network underground.

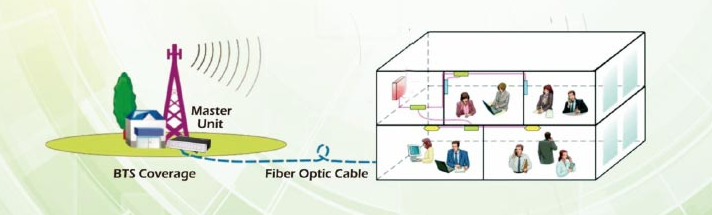

The system consists of two parts: Master Unit and Remote Unit. The Master unit captures the BTS signal via direct coupler closed to BTS, then converts it into optic signal and transmits the amplified signal to the Remote Unit via fiber optic cable.

The Remote unit will reconvert the optic signal into RF signal and provide the signal to the areas where network coverage is inadequate. And the mobile signal is also amplified and retransmitted to the BTS via the opposite direction.


Feature

1. Tx/Rx control and alarm messages can be transmitted via one fiber optic cable, LTE MIMO signals via other fiber optic cable.
2. Adopting WDM module to realize long-distance transmission.
3. Stable and improved signal transmission quality.
4. One Master Unit can support up to 16 Remote Units to maximize utilization of fiber optic cable.
5. RJ45 port provides a link to a notebook for local supervision or IP Based NMS (Network Management System) that can remotely supervise repeater’s working status and download operational parameters to the repeater via Ethernet/LAN.

Application


To expand signal coverage or fill signal blind area where signal is weak or unavailable.

1. Outdoor: Airports, tourism regions, golf courses, tunnels, factories, mining districts, villages, …

2. Indoor: Hotels, exhibition centers, basements, shopping malls, offices, parking lots, …



Technical Specification

ItemSpecifications
System NR3800(TDD) with 4X4 MIMO
Working FrequencyUplink3700~3800MHz&3700~3800MHz&3700~3800MHz&3700~3800MHz
Downlink3700~3800MHz&3700~3800MHz&3700~3800MHz&3700~3800MHz
Working Bandwidth100MHz&100MHz&100MHz&100MHz
Frequency Stability(+/-0.01ppm)≤0.01ppm
RMS Output Power@Bandwidth24±2dBm(DL)
EVM≤ 4.5%
Gain Flatness≤±6dB for All Band
AGC/ALC FunctionSupport
AGC/ALC Range10dB
Noise Figure@Max.Gain(DL/UL)≤5dB
Group(System) Delay

≤1.5us

Cooling FunctionHeatsink
Local Monitoring InterfaceVia USB Interface and WiFi Hotspot
Remote Monitoring ModuleThrough MU via Fiber Optical Cable
Optical Connector Type4xFC/APC
RF Connector Type4xN-Female
Power SupplyAC100V- AC240V, 50/60Hz
Power Consumption≤70W
Dimensions318mm×265mm×113mm
Weight≤11kg
ApplicationIndoor
Operating Temperature-10℃~55℃
Relative Humidity≤95%
