Frequency RangeN41 (2515-2675MHz)
Technology5GNR
Output Power24dBm/Channel
5g NR extended small cell is a 5g new digital room coverage product. Based on the baseband and RF separation technology, the system forms a multi pull far coverage, which well solves the problems related to the complex construction of traditional DAS and the high deployment cost of macro network base station in the indoor scene. It has the characteristics of low cost, high efficiency and excellent performance. It is an innovative solution for the expansion of indoor 5g signal hot spots, blind spot supplement and deep coverage of operators.

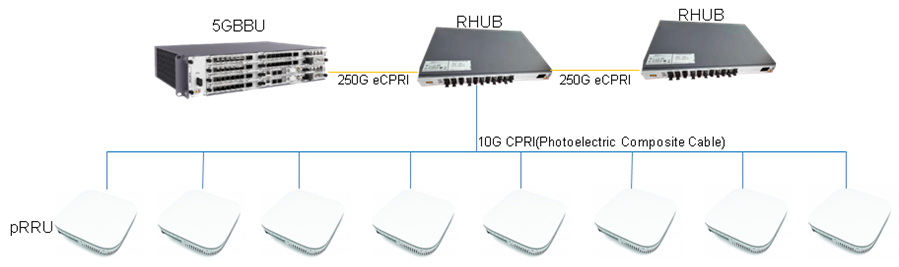

This is 2.6G pRRU product, which is a 5G extended pico base station, the remote unit in the network usually needs to be used in conjunction with the extension unit (rHUB/EU) and the baseband unit (BBU) to realize 5G Wireless signal coverage.
The 5G pRRU remote unit adopts digital technology and uses optical fiber to carry wireless signals for remote coverage, which is mainly used in indoor coverage scenarios.
2T2R design, can be upgraded to 200MHz processing bandwidth
Compatible with CPRI and eCPRI interfaces
Compliant with O-RAN specifications, it can be interconnected with expansion units or BBUs of different manufacturers
The product is small in size, high in efficiency and light in weight, which is convenient for indoor installation
Support remote upgrade and maintenance

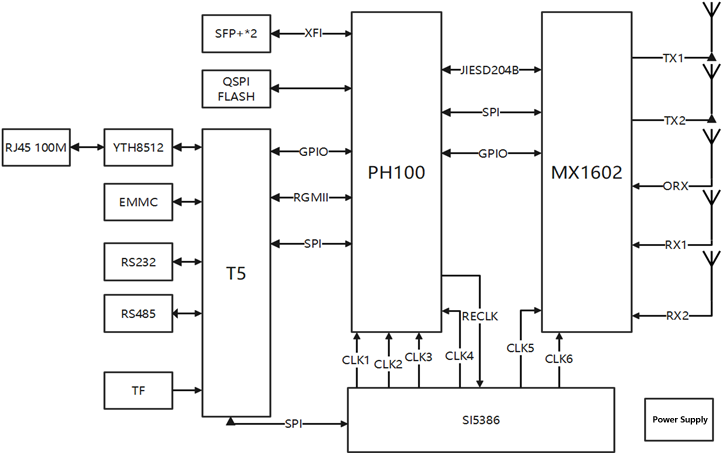

Schematic Diagram:
Items | Specifications |
System | 5GNR |
Working Frequency Range | N41 (2515-2675MHz) |
Working Bandwidth | 80/100MHz |
RF Channel | 2T2R |
Output Power | 24dBm/Channel |
EVM | <17.5% QPSK(Maximum Power) <12.5% 16QAM(Maximum Power) <8% 64QAM(Maximum Power) <3.5% 256QAM(Maximum Power) |
Frequency Error | <0.01ppm |
ACLR | >45dB |
Shutdown Power | <-89dBm/MHz |
Spurious Emission | Comply with 3GPP TS 38.104 V16.0.0 |
Receive Sensitivity | The throughput loss should not exceed 5%, referring to the measurement channel G-FR1-A1-5, and the single-channel receiver sensitivity should not be higher than -94dBm. (Receiver sensitivity to match tested BBU subject) |
Blocking | In-channel selectivity, ACS, in-band narrowband blocking, out-of-band blocking, receiving inter-modulation, WiFi coexistence and other indicators, under various interference signal conditions required in 3GPP 38.104, the single-channel receiver sensitivity is not high in any case at -88dBm. (Receiver sensitivity is subject to the BBU tested) |
I/O Impedance | 50Ω |
ANT Interface | Built-in Antenna or External Antenna (SMA-F) |
Power Supply | DC48V |
Power Consumption | ≤40W |
Dimensions | 219mmx174.5mmx62mm |
Weight | ≤2.5kg |
Mounting | Wall or Pole Mounting |
Operating Temperature | -5°C ~ +55 °C |
Storage Temperature | -20°C ~ +65 °C |
Application | Indoor |
Relative Humidity Range | ≤85%(Non Condensing) |
