MQ4 MQ5 Dual band combiner | Diplexer

MQ4 MQ5 Dual band combiner | Diplexer

Model: AT0504022338MQ4F

Product Description

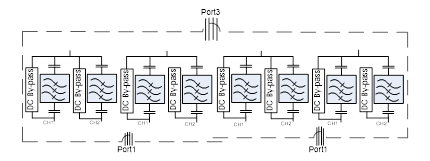

Schematic Diagram:

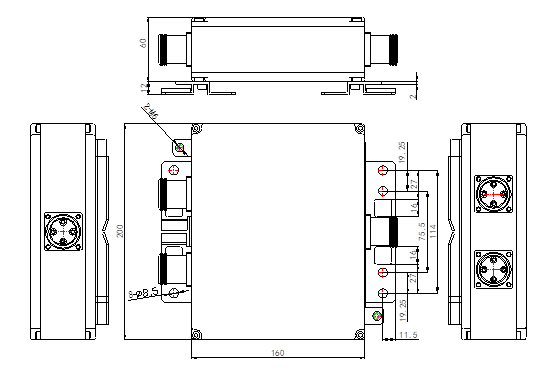

Outline Drawing:



Technical Specification

Type

2Ports   In- 1Port Out

Channel

Channel1

Channel 2

Frequency   Range

2300~2690MHz

3500~3800MHz

Insertion   Loss

0.5dB

≤ 0.5dB

VSWR

≤ 1.25

Isolation

≥ 50dB

PIM3

-150dBc @ 2 x 43dBm

Power   Handling

100W(Avg.)

DC/AISG

By-pass (max.   3000mA)

Lightning   Protection

10KA; 10/350μs pulse

Impedance

50 Ω

Connector   Type

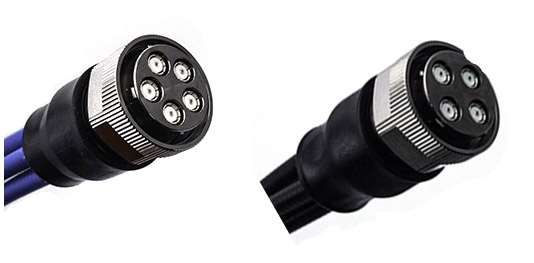

MQ4-Female

Application

Outdoor(IP67)

Operating   Temperature

-20°C to +60°C

Relative Humidity

5% - 95%

Dimensions

200x160x60mm(Without   Connectors)

Weight

≤ 3.8Kg(Single   Unit)

Color

Gray

Mounting

Wall Mounting: With   4 Screws / Mast Mounting: With Additional Clamp Set

Bracket

Included




1/4” Super Flexible Jumper Cable Assembly MQ4 Male To NEX10 Male


Model: AT03MQ4M050014SNEX10M


Items

Specifications

Cable   Type

1/4” Super Flexible Jumper Cable(Black PE)

Cable   Length

5 Meters

Connector   Type

MQ4 Male to NEX10 Male

Connector   Angle

Straight

Assembly   Method

Soldering

Impedance

50Ω

Insulation   Resistance

≥5000MΩ·km

Dielectric   Withstanding Voltage

1000V rms

Operating   Voltage

500V rms

Maximum   Operating Frequency

≤6.0GHz

Insertion   Loss

≤ 0.37*L+0.20dB(L=   Cable Length) @DC~3.0GHz,

≤ 0.54*L+0.23dB(L=   Cable Length) @3.0~6.0GHz

VSWR

≤ 1.15@DC-2.7GHz, ≤ 1.20@2.7-4.2GHz,

≤ 1.35@4.2-6.0GHz

PIM3

≤-155dBc@1800MHz

Temperature Range

Installation Temperature: -45°C ~ + 65°C

Operating Temperature: -45°C ~ + 85°C
